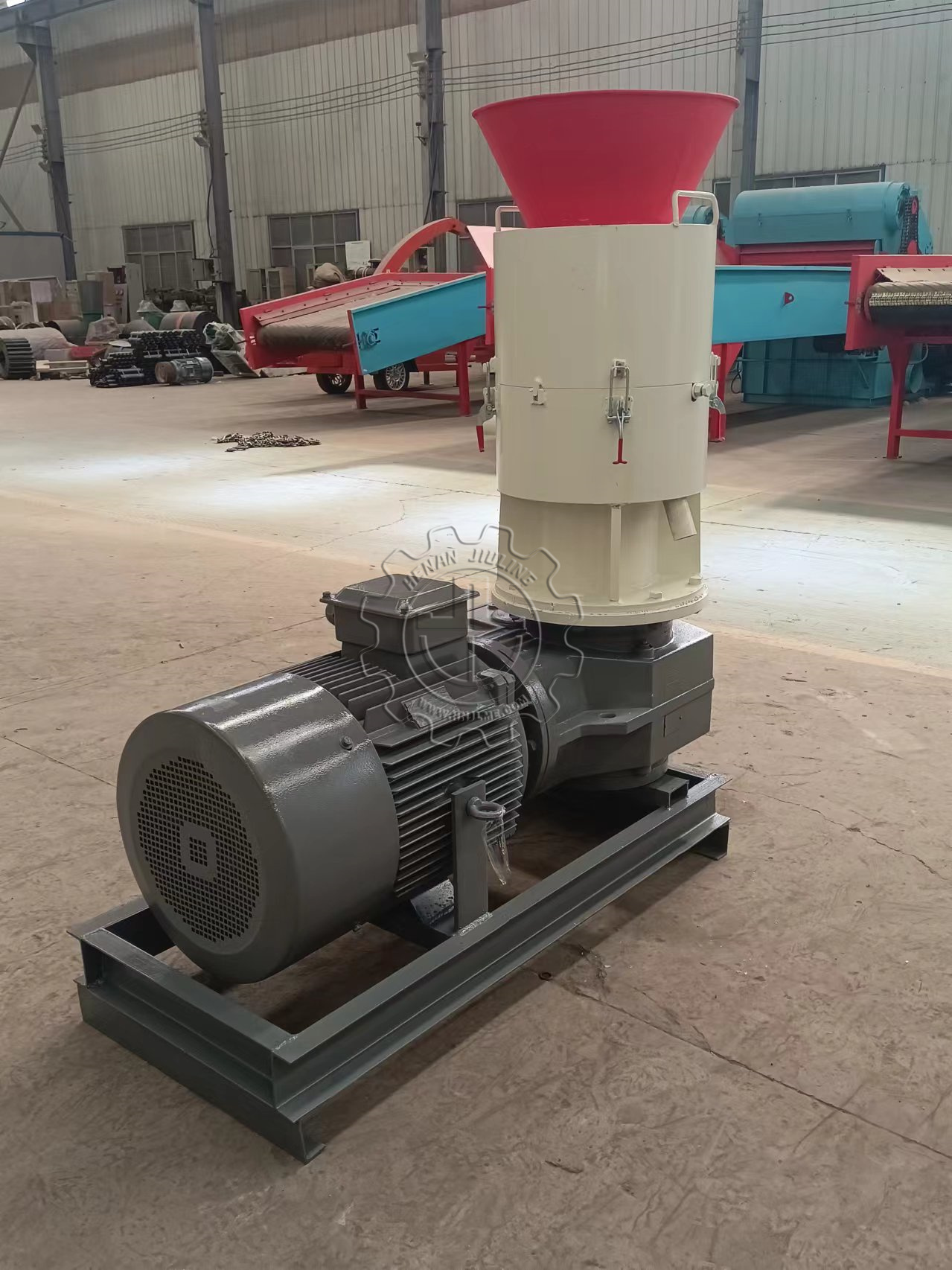

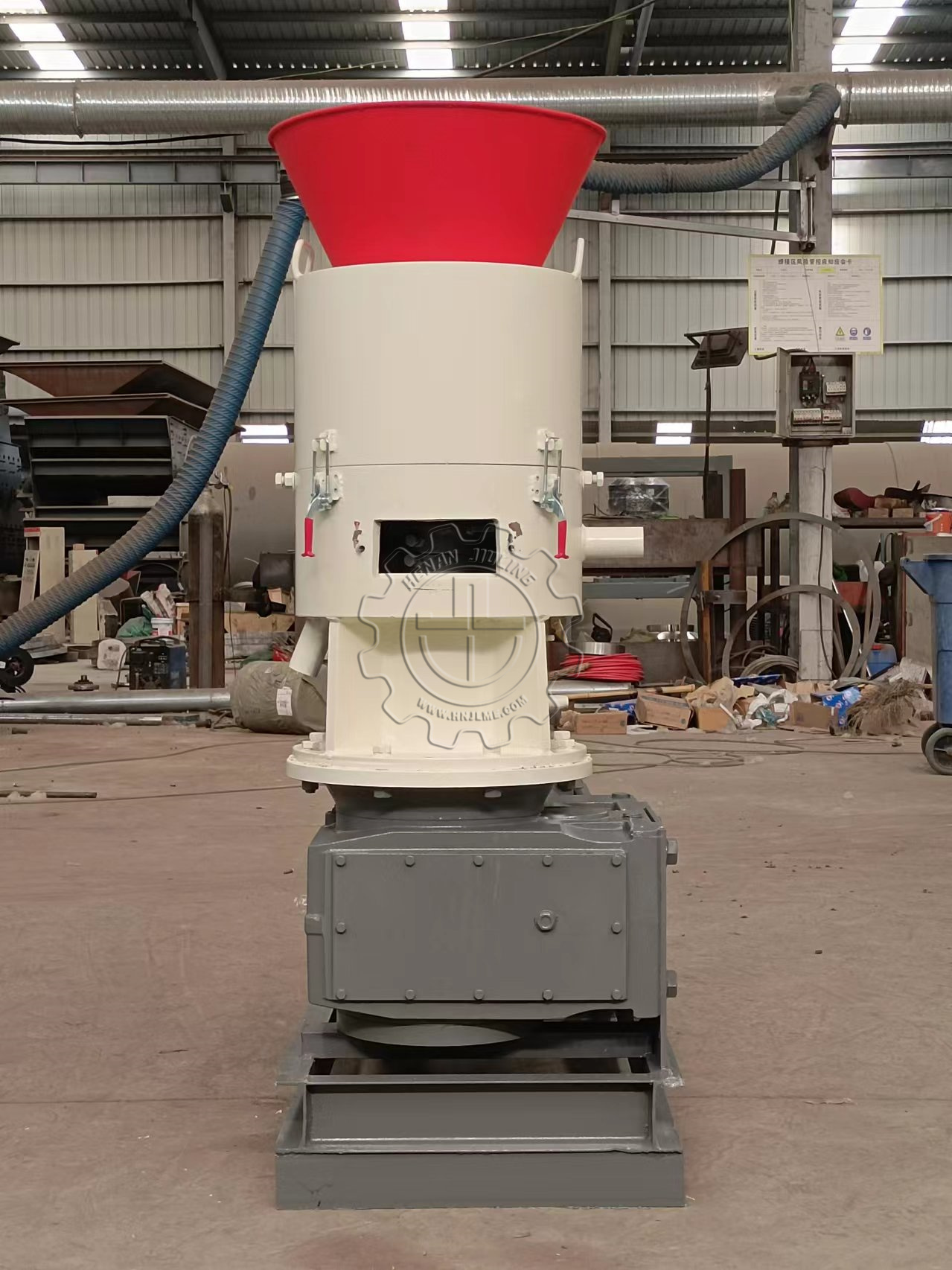

Flat Die Pelletizer
Such as: wood chips, rice husks, cotton stalks, cottonseed husks, weeds and other crop straws, household garbage and other materials with low binding rate and difficult to form granulation; it can also be applied to biological fertilizers, organic fertilizers, compound fertilizers, etc. Low temperature granulation.
The flat die granulator is suitable for equipment such as coarse fiber granulation
Such as: wood chips, rice husks, cotton stalks, cottonseed husks, weeds and other crop straws, household garbage and other materials with low binding rate and difficult to form granulation; it can also be applied to biological fertilizers, organic fertilizers, compound fertilizers, etc. Low temperature granulation.
The screw center pressure regulating mechanism is adopted, and the mold gap varies with size, suitable for different materials, and ensures the pressing effect
Final pellets
Advantages:
1、the pellets strength is stronger
2、the pelletizer mold can be customized to produce different size pellets wide material range:can be used for making pellets for materials: animal feed, fish feed, organic fertilizer, compound fertilizer, and biomass pellets
Main technical specification:
| Model | Capacity(kg/h) | Power(kw) | Weight(kg) | Roller Qty(pcs) | Roller Qty(pcs) |
| JLPM-125 | 50 | 3/4 | 85 | 2 | 90*50*60 |
| JLPM-150 | 100 | 3/4 | 90 | 2 | 95*50*70 |
| JLPM-210 | 250 | 7.5/11 | 180 | 3 | 110*50*80 |
| JLPM-260 | 500 | 15/18.5 | 300 | 3 | 130*50*90 |
| JLPM-300 | 1000 | 22 | 400 | 3 | 145*55*100 |
| JLPM-400 | 1500 | 30 | 850 | 4 | 165*70*120 |
