Animal Manure Fertitation tank
2. Volume: 102m³
3. Fermentation period: 7 days
4.Sealed and insulated fermentation, energy saving and environmental protection
5. Only need 100m² area, save space rather than common open fermentation
Product Fertures:
1. The treatment process consumes less energy and has low operating costs; it makes full use of space and occupies a small area;
2. High degree of automation, using PLC combined with the host computer to achieve remote control;
3. The treatment process is fully enclosed and does not produce secondary pollution;
4. Use biological deodorization, and the waste gas emissions during the treatment process meet the standards;
5. The interior is made of stainless steel 304, which is corrosion-resistant and has a long service life;
6. Equipped with auxiliary air supply heating device to ensure normal operation of the equipment in low temperature environments.
Technical Parameters:
| Tank dia | 6000mm |
| Tank Height | 7940mm |
| Tank volume height | 3900mm |
| Minimum occupy area | 45m² |
| Tank Volume | 102m² |
| Feed Hopper volume | 1.4m³ |
| Material handling capacity | 10-15m³/d(50-70% moisture) |
| Output capacity | 4-6m³/d(30% moisture) |
| Air blower power | 12.5*2kw |
| Hydraulic transmission power | 7.5+3kw |
| Air ID fan power | 3kw |
| Auxiliary heating power | 4kw |
| Total rated power | 43.1kw |
| Real operating power | 23kw |
Raw materials suitable for organic fertilizer fermentation tanks:

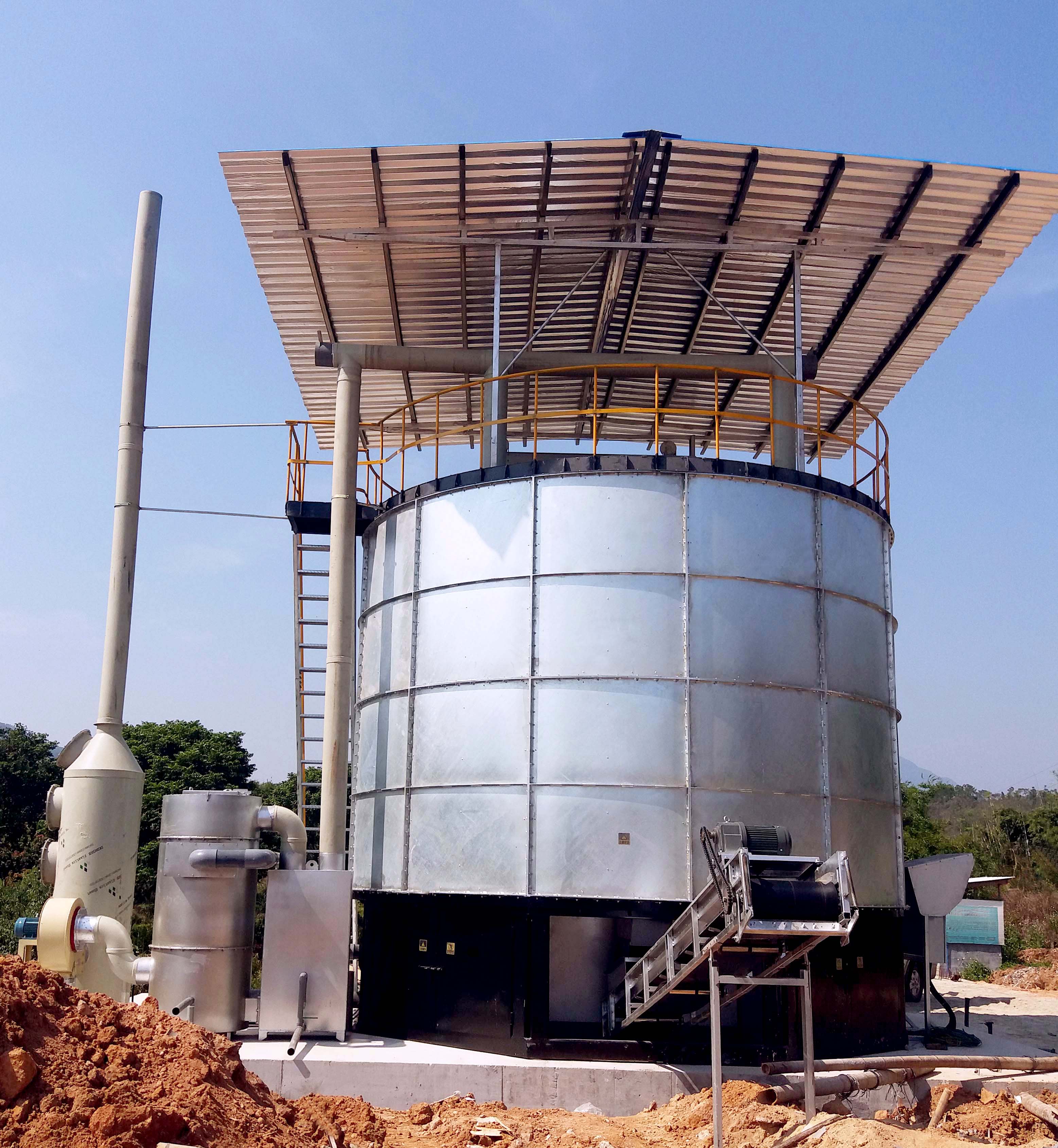

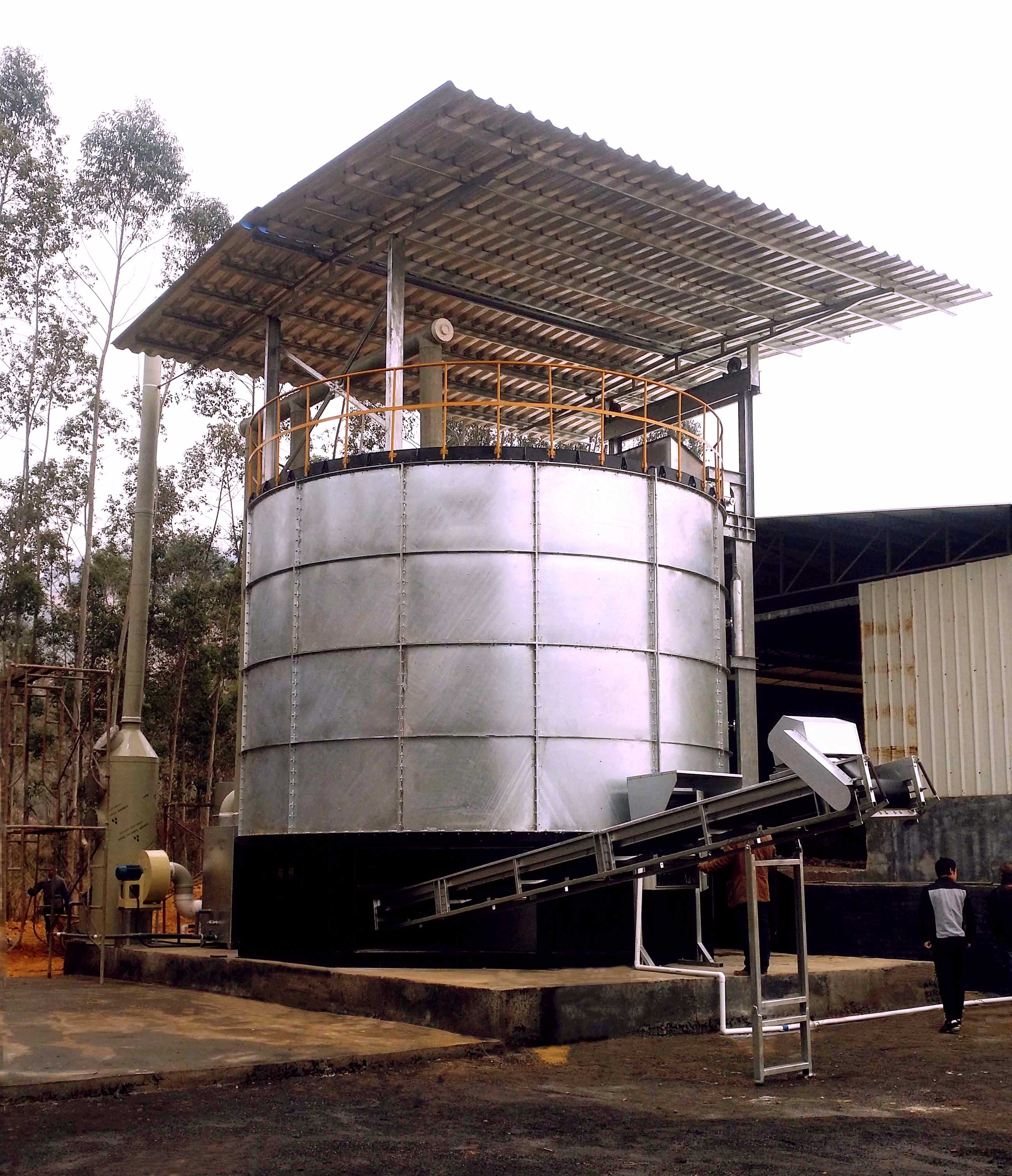

Machine working site pictures & video
