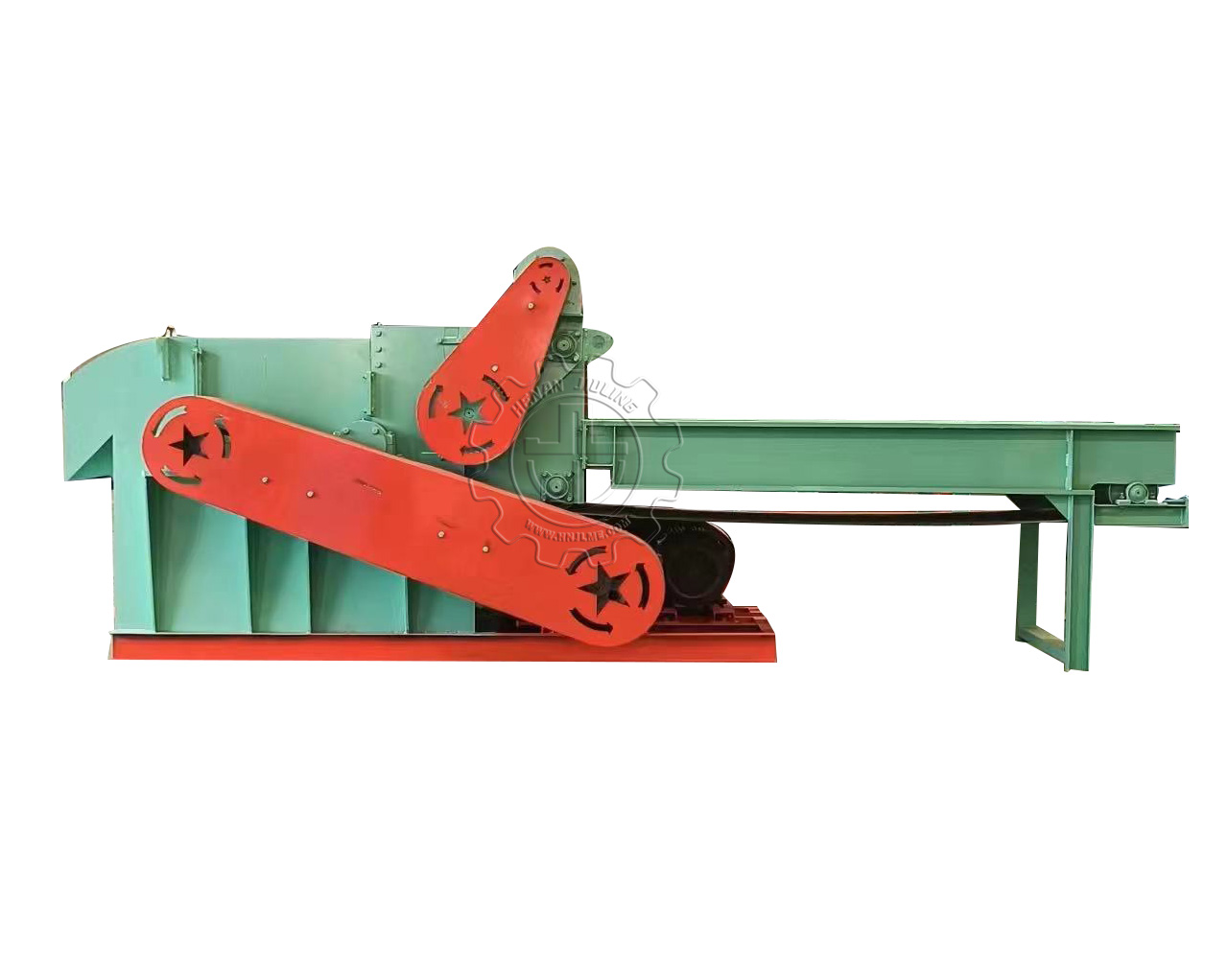

Wood branch crusher
Matching Power:11-45kw
Machine Valtage: 380V,50HZ, or customized according to your country electrical system
Applicable Materials:wood branches & leaves, Coconut shell, tobacco stem,Corn straw, wheat straw, cotton straw, straw, rice husk, peanut husk, corn cob,
The wood branch crusher the third generation of equipment produced by our company. It uses a zigzag curved knife and a straight blade to tear the straw, branches into slender filaments. Compared with the traditional crusher, the crushed material is more fine. No hard segments. Suitable for feeding beef cattle, dairy cows, horses, sheep, donkeys and other livestock. It has the advantages of compact structure, beautiful appearance, strong and durable, small vibration, low power consumption, simple maintenance, easy use, safety and reliability.
Performance characteristics
This product design is reasonable, the manufacture quality is reliable, has the structure simple, the operation is convenient, the volume is small, occupies the land little, saves the labor, saves the electricity characteristic.The designed automatic control electric heating device can adjust the dry and humidity of materials randomly, ensure the stability of discharging molding, and improve the working efficiency.The main parts of this product are made of wear-resistant material, which is specially treated, so it can be continuously pressed and durable.Suitable for all kinds of biomass raw materials (corn straw, wheat straw, cotton straw, straw, branches, leaves, sawdust and other agricultural materials as raw materials or wood.
PRODUCT PARAMETER
| Model | Capacity(t/h) | Power(kw) | Weight(kg) | Dimension(mm) | Hammer Qty(pcs) |
| JLJGF-4000 | 1-5 | 5 | 430 | 2130*550*1020 | 24 |
| JLJGF-6000 | 6-8 | 12 | 560 | 3130*760*1100 | 32 |
| JLJGF-10000 | 9-12 | 16.5 | 680 | 3100*760*1100 | 40 |
| JLJGF-15000 | 13-15 | 24 | 980 | 3430*900*1230mm | 48 |
Working principle
Straw crusher can be matched by motor, diesel engine or 30-50 horsepower tractor, the main engine is composed of feeding mechanism, zha cutting mechanism, throwing mechanism, transmission mechanism, walking mechanism, protective device and rack.It has the advantages of reasonable structure, convenient movement, automatic feeding, safety and reliability.
Its components are as follows:
1. Feeding mechanism: it is mainly composed of feeding platform, upper and lower cao kun, fixed blade, fixed knife support base.
2, zha cutting and throwing mechanism: mainly by the moving knife, knife disc, lock screws and other components.
3. Transmission mechanism: mainly composed of triangle belt, transmission shaft, gear, universal joint, etc.
4. Walking mechanism: mainly composed of ground casters.
5. Protective device: it is composed of protective cover.
