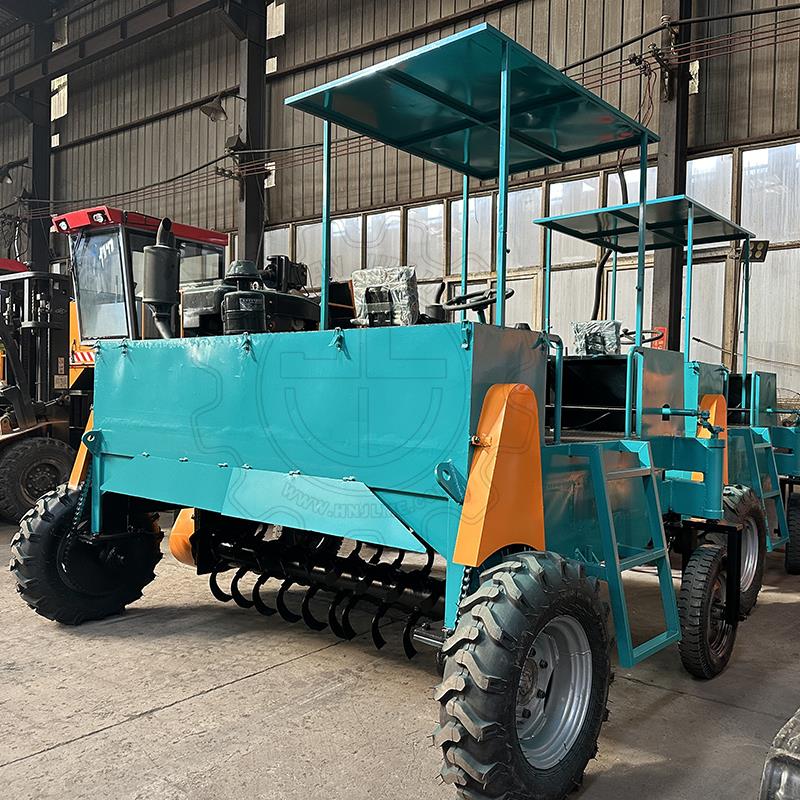

2m Small Wheel Moving Compost Making Machine
2. Usage: used for processing livestock and poultry manure for small animal farm into fertilizer;
3. Special function: the water spray system can adding fermentation bacteria into the raw material, to accelerate the fermentation process.
Working Principle

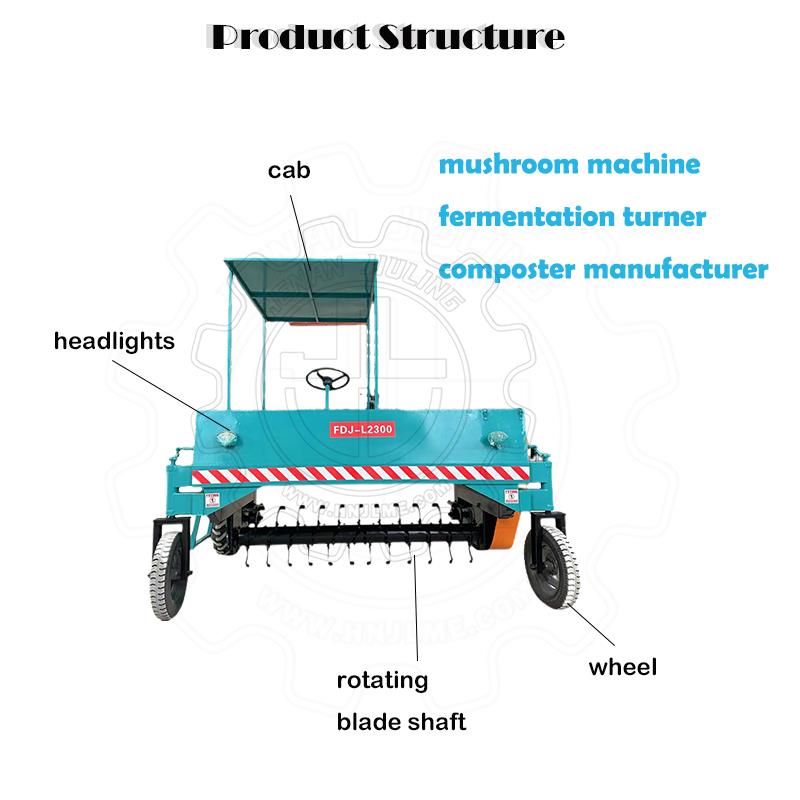

The wheel type compost turner machine drives the turning wheel to rotate through a driving device. The blades or racks on the turning wheel lift the material from the bottom and throw it backwards, while also dispersing and mixing the material. This process not only evenly heats the materials, but also increases oxygen supply, promotes microbial activity, and accelerates the composting process.
| Model | JLLF-2000 |
| Turn Width(m) | 2 |
|
Turn depth(m) |
0.6-0.8 |
| Windrow space(m) | 0.5-0.8 |
| Material size diameter(mm) | 250 |
| Engine power(hp) water cooling, electrical start | 36 |
| Rotary speed(r/min) | 2200 |
| Turn speed(m/min) | 7.5-8 |
| Turn blade dia(mm) | 600 |
| Capacity(m³/h) | 400-500 |
| Weight(kg) | 1500 |
| Dimension(m) | 2.35*3.15*2.8 |
Working Site
The animal manure windrow can be outdoor(if your country very dry, very less rain all year),or you can build a shelter for the fermentation area.
Henan Jiuling Machinery Equipment Co., Ltd, which is a famous and large enterprise specialized in researching and developing,designing, manufacturing and selling organic and compound fertilizer equipment, With more than 18 years of rich production experience, advanced technical advantages and excellent equipment quality, it has won praise and trust from world-wide. The company is located in High-tech industrial development zone, Zhengzhou city , Henan province, and we have purchased international advanced large and medium-sized pecisive Processing Instruments, including 10 CNC processing centers and 3 sets of laser cutting machines, more than 100 sets of all kinds of equipment in total, to make sure produce the precise working machines.
