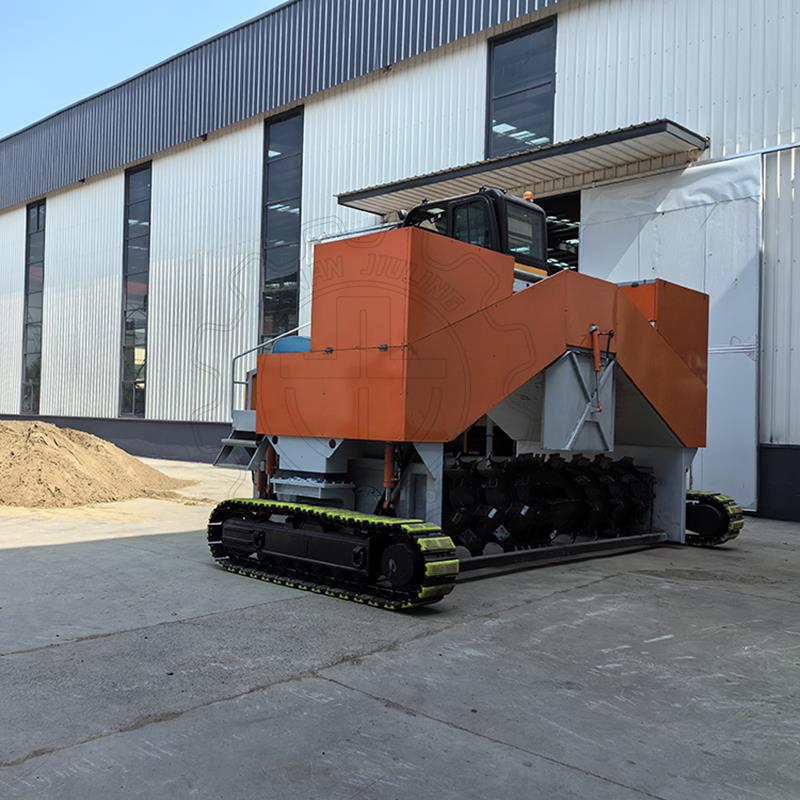

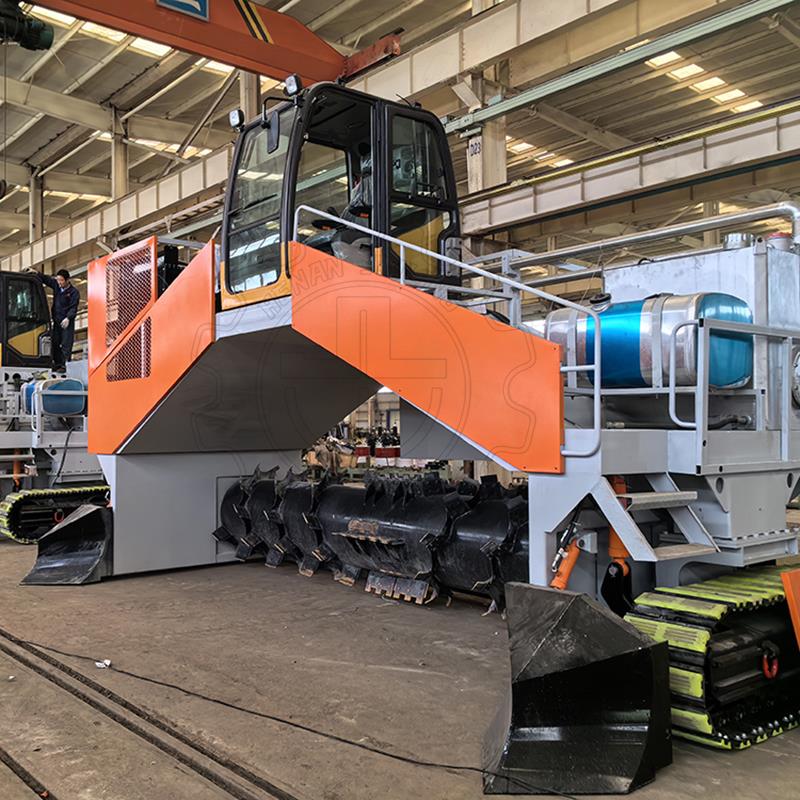

5M Large Composting turner Self-propelled compost turner machine
Power:240hp
Applicable Materials: Cow manure, pig drop, chicken manure,municipal sludge, fruit and vegetable waste,sugar dregs cake, bagasse, corn straw.
Advantages:
1. No need complicated civil work, save construction cost
2. Operation easily, no need highly skilled workers
3. Turning capacity and efficient higher than other type same or familiar price compost turner.
Crawler turner is a specialized equipment used for composting and fermenting organic waste such as livestock manure, crop straw, sludge, etc. It promotes the entry of oxygen and accelerates the aerobic fermentation process by flipping and throwing materials, and is widely used in fields such as organic fertilizer production lines, environmental engineering, and agricultural waste treatment.
| Model | JLLDF-2400 | JLLDF-2600 | JLLDF-3000 | JLLDF-3000(Full Hydraulic) | JLLDF-4000 |
| Turning width(mm) | 2400 | 2600 | 3000 | 3000 | 4000 |
| Turning depth(mm) | 800-1000 | 1000-1300 | 1300-1500 | 1300-1500 | 1800-2000 |
| Windrow space(mm) | 800-1000 | 800-1000 | 800-1000 | 800-1000 | 800-1000 |
| Power(hp) | 75 | 116 | 136 | 143 | 240 |
| Blade dia(mm) | 400 | 500 | 800 | 800 | 1200 |
| Working speed(m/min) | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Capacity(m³/h) | 500-700 | 1000-1300 | 1300-1500 | 1500-1800 | 1800-2500 |
More Model Please Contact Us
Performance Characteristics
Jiuling crawler type compost turner has the following characteristics:
1. The operation is easier and the hydraulic directional type was eliminated; save the site, artificial, diesel, shorten the working time, advanced the fermentation cycle.
2. This product has been turned over and separated by soft start. (The other domestic products of the same kind use iron for iron hard clutch, which has a serious damage to the chain, bearing and shaft).
3. Installed front hydraulic push plat, so it is no need to manually take the whole pile.
4. Cylinder hydraulic lifting.
The raw materials mainly include the following categories:
1. Organic waste
Livestock manure: such as chicken manure, pig manure, cow manure, etc.
Crop straw: such as corn stalks, rice straw, wheat straw, etc.
Food processing waste: such as vegetable residue, soybean residue, etc.
Garden waste: such as leaves, grass clippings, etc.
2. Auxiliary materials
Regulator: such as lime, gypsum, etc., used to adjust pH value.
Carbon sources: such as sawdust, rice husks, etc., used to balance the carbon to nitrogen ratio.
Microbial agents: used to accelerate fermentation.
3. Other
Water: Used to regulate humidity.
Covering material: such as plastic cloth, used for insulation and moisture retention.
4. Recycling materials
Sludge: such as sludge from sewage treatment plants.
Household waste: Organic waste that has been classified.
These raw materials are mixed and tossed by a flipping machine to promote fermentation and ultimately produce organic fertilizer.

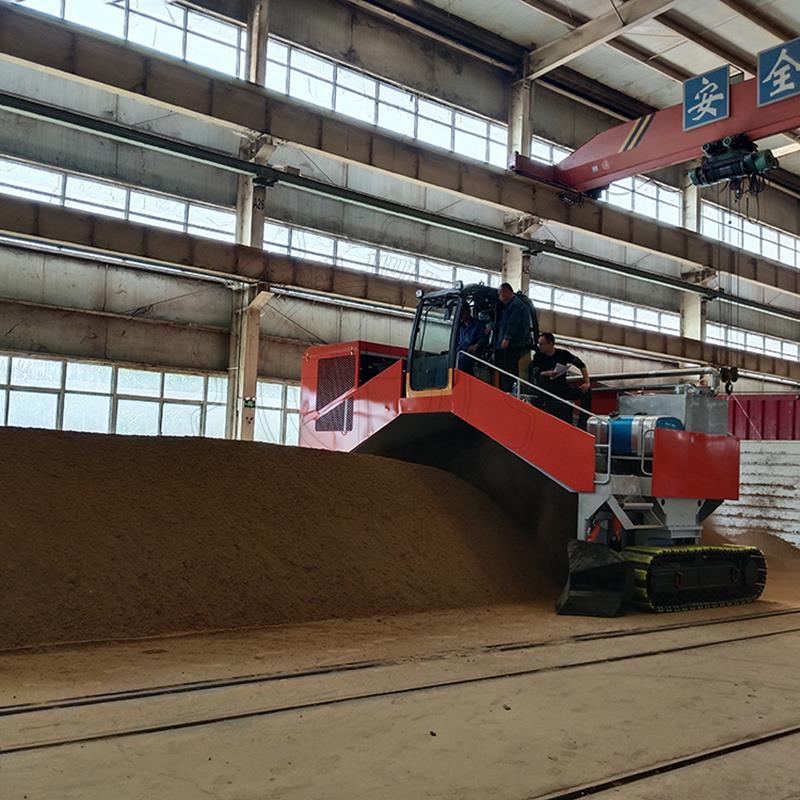

Clients' machine working site:
Henan Jiuling Machinery Equipment Co., Ltd, which is a famous and large enterprise specialized in researching and developing,designing, manufacturing and selling organic and compound fertilizer equipment, With more than 18 years of rich production experience, advanced technical advantages and excellent equipment quality, it has won praise and trust from world-wide. The company is located in High-tech industrial development zone, Zhengzhou city , Henan province, and we have purchased international advanced large and medium-sized pecisive Processing Instruments, including 10 CNC processing centers and 3 sets of laser cutting machines, more than 100 sets of all kinds of equipment in total, to make sure produce the precise working machines.
FAQ：
Working video
